ASCII art diagrams

“Technology is additive.” — Kevin Kelly

Old technologies never die. Instead, their range of application shrinks. Or maybe it grows when conditions change.

ASCII art, drawing pictures with fixed-width plain text characters, is no longer how many people want to produce diagrams. Just fire up Adobe Illustrator and you get incomparably more resolution of expression.

And yet there are times when ASCII art comes in handy. You can, for example, paste it into source code files. Someone more familiar with Emacs than Illustrator may be able to produce a simple diagram in the former faster than the latter. And it can be relatively easy to programmatically produce a large number of ASCII art diagrams, depending on the nature of the diagrams.

It’s also possible to use ASCII art as a way to specify nicely rendered images. I’ll show how to do that with ditaa below.

Here’s an ASCII version of the conjugate prior diagram I made some time ago:




                          +-------------+
                          |             |
                          | Exponential |
                          |             |
                          +-------------+
                                 |
                          lambda |
                                 v
+-------------+           +-------------+           +-------------+
|             |   tau     |             |   lambda  |             |
|  Lognormal  |---------->|    Gamma    |<----------| Poisson     |
|             |           |             |---+       |             |
+-------------+           +-------------+   |       +-------------+
      |                         ^ ^         | beta
      |                   tau   | |         |
      | tau                     | +---------+
      |                   +-------------+
      +------------------>|             |
                          |     Normal  |
                          |             |----+
                          +-------------+    |
                                     ^       | mu
                                     |       |
                                     +-------+

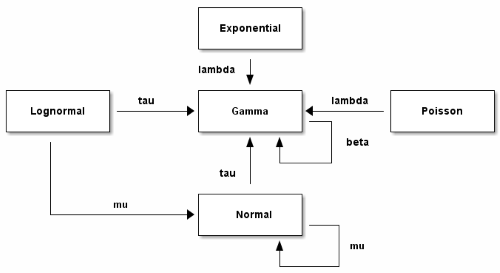

And here’s the image produced by ditaa processing the ASCII diagram above:

Conjugate prior diagram produced by ditaa

Update: See my next post on how to create ASCII art diagrams and their graphic version from ditaa using Emacs org mode.

Update: When I first made the diagram above, I tried using Greek letters, e.g. using β rather than “beta,” but this didn’t work. I thought “OK, I suppose it’s not really ASCII art if you use non-ASCII characters.” But someone told me Unicode characters worked for him, so I tried again when I wrote the follow up post and it worked.

My first attempt, from a Windows laptop, calling ditaa from the command line, did not work. My second attempt, running inside org-mode from a Windows desktop, did work. My third attempt, running from Emacs on Linux also worked.

ditaa diagram using Unicode symbols

* * *

For daily tips on using Unix, follow @UnixToolTip on Twitter.

UnixToolTip twitter icon

3 thoughts on “ASCII art diagrams

  1. Hello,
    I’m Hiroshi Ukai, a software engineer in Tokyo and a parttime Ph.D student, who recently restarted working with LaTeX after 20 years of blank.

    I wrote a paper this week and, in it, I used this .sty which renders ditaa ascii art into .png file and allows you to use it from inside your .tex filea.

    https://gist.github.com/dakusui/160dba81fb7dc53d24b3596ef21bd979

    (Actually, I created this .sty for myself but I found it would be useful for others, too)

    Question is here, one of your diagrams has greek alphabets in it such as Tau, Gamma, etc. How did you render the diagram?
    When I was using the .sty, I felt like I wanted to use LaTeX’s math equation formatting functionality, which is another old technology but still the best one for the purpose on this planet.

    I’m considering to enhance ditaa itself to be able to use it if it’s not possible. But your diagram suggested me that I don’t need to try it.

    Thanks in advance for your reply.
